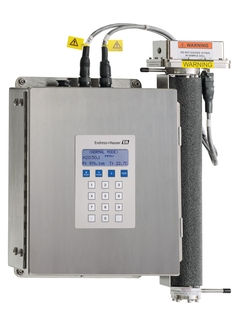

Product picture SS500 single channel H2O, gas analyzer, right angle view

SS500 moisture analyzer

Name: SS500
Brand: Endress+Hauser
Availability: InStock

Extremely reliable and tailored to the needs of the natural gas industry

SS500

Compare

This product is not available in this market.

*Please contact your Endress+Hauser sales partner for any further questions.

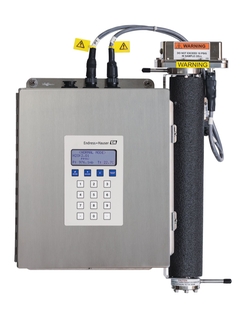

Product picture SS500 single channel H2O, gas analyzer, front view

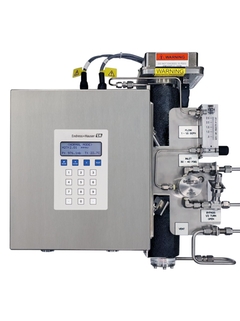

Product picture SS500 single channel H2O, gas analyzer, with sample system, front view — SS500 with sample system insulation

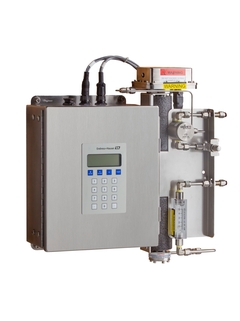

Product picture SS500 single channel H2O, gas analyzer, with sample system, right angle view

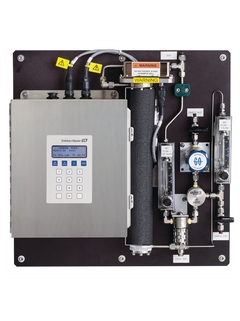

Product picture SS500 single channel H2O, gas analyzer, panel mount, front view — SS500 mounted on a panel

SS500 H₂O analyzer offers truly reliable measurement and simple operation

Specs at a glance

Measured Variables

Concentration
Dew Point
Cell Pressure
Cell Temperature
Hazardous area approvals

CSA Class I, Division 2
CSA Class I, Zone 2

See all specifications

Field of application

Using patented tunable diode laser spectroscopy (TDLAS) technology, the SS500 analyzer is an economical choice for measuring H₂O concentration in natural gas without coming into physical contact with the stream. The result is a sensor that does not suffer from contamination or drift due to vapor impurities such as glycol, methanol, or amines.

Natural gas quality measurements in production, storage, transportation, and distribution

Monitoring for natural gas pipelines, processing plants, compressor stations, gathering sites, and distribution quality

Suitable for use as a check-measurement device

Measurable ranges of up to 0-250 lb/mmscf (0-5275 ppm) H2O

Benefits

Economical real-time moisture measurements
Virtually maintenance-free
Reliable in harsh environments
Fast and accurate with no wet-up or dry-down delays
No contamination or drift due to vapor impurities such as glycol, methanol, amines, hydrogen sulfide, or mercaptans
NIST-traceable calibration with analog and serial outputs for remote monitoring
CSA certified for CSA Class 1, Division 2 or Class 1, Division 1
