Memosens CLS82E - Hygienic 4-electrode conductivity sensor for life sciences, food & beverage

Digital 4-electrode conductivity sensor
Memosens CLS82E

Memosens 2.0 contacting conductivity sensor for hygienic applications in life sciences, food & bev

CLS82E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

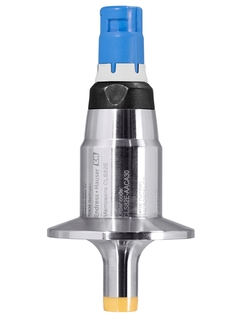

Memosens CLS82E - Digital conductivity sensor for applications requiring a wide measuring range
  • F
  • L
  • E
  • X
©Endress+Hauser

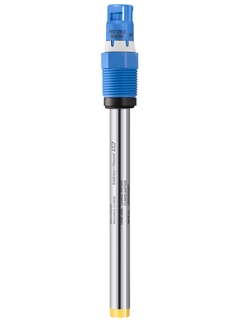

Memosens CLS82E - 4-electrode conductivity sensor with compact design for small pipe diameters
  • F
  • L
  • E
  • X
©Endress+Hauser

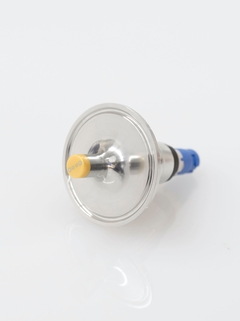

Memosens CLS82E - The 4-electrode technology supports a wide measuring range
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measuring range

    1 µS/cm to 500 mS/cm

  • Process temperature

    -5 to 120 °C (23 to 248 °F)
    Sterilization: max. 140 °C at 6 bar for max. 45 min
    (Max. 284 °F at 87 psi for max. 45 min)

  • Process pressure

    17 bar abs at 20 °C (247 psi at 68 °F)
    9 bar abs at 120 °C (131 psi at 248 °F)

Field of application

Memosens CLS82E is a high-end, hygienic sensor for applications with widely varying conductivity values. It enables reliable monitoring of core processes as well as final rinse with only one sensor. FDA compliance and a small, compact design ensure the perfect fit to your processes. With Memosens 2.0 digital technology, CLS82E allows for extended storage of process and sensor data facilitating lab calibration and predictive maintenance and providing the perfect basis for enhanced IIoT services.

Memosens CLS82E measures conductivity in applications that need to cover a wide measuring range as in:

  • Phase separation

  • Downstream processing

  • Fermentation

  • Chromatography

  • Ultrafiltration

  • Final rinse in pharma applications

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.

Benefits

  • Hygienic design and materials certified and approved by EHEDG, 3-A and FDA ensure compliance with GMP requirements. The sensor is sterilizable and autoclavable.

  • Absolute loop safety thanks to Memosens and unique detection of build-up on electrodes.

  • The broad measuring range enables monitoring of core processes and final rinse with one sensor, saving costs.

  • Its compact design makes the sensor suitable for small pipe diameters and narrow, space-limited installations.

  • Quality certificate stating the individual cell constant allows precise adjustment of the measurement.

  • Non-contact, inductive signal transmission ensures high process and data integrity.

  • IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

Videos

  • This video shows how Memosens CLS82E uses the 4-electrode measuring principle to reach maximum accuracy over a wide conductivity range and why it is perfectly suited for hygienic applications.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
