Specs at a glance
Process temperature
-40°C...+80°C
Process pressure / max. overpressure limit
-1 ... 6 bar(-14.5 ... 90 psi)
Field of application

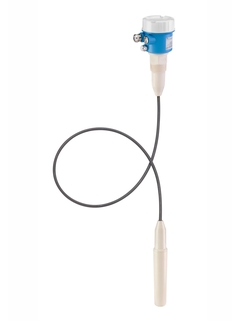

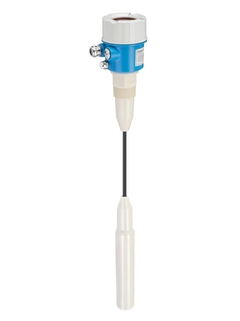

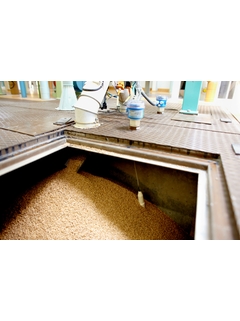

Minicap FTC262 is a simple and cost-effective rope probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Process connection: Threads
Temperature: -40 to +80°C (-40 to +176°F)
Pressure: -1 to +6bar (-14.5 to +90psi)
Sensor length: 500mm (20") to 6,000mm (236")
International explosion protection certificates, overfill prevention WHG
Benefits
Simple mounting and commissioning without calibration
Mechanical safety, cost-efficiency and long operating life due to no wearing parts
High operational safety and reliability due to active build-up compensation
Optimized storage by simply shortening the rope probe on site
Fundamental selection
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
©Endress+Hauser
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Loading alternative products
Success stories
Time saved, safety increased
Employees of Returkraft regularly have to fulfill and document all requirements of the SIL measuring points in the plant.
Read the full story
Characteristic / Application
No calibration on start-up
Specialities
Rope shortening parts to be supplied by the customer
Supply / Communication
10,8 ... 45V DC, DC-PNP 3-wire
Ambient temperature
-40°C...+70 °C(-40°F...+158°F)
Process temperature
-40°C...+80°C
Process pressure / max. overpressure limit
-1 ... 6 bar(-14.5 ... 90 psi)
Main wetted parts
PPS = Polyphenylene sulphide
Sensor length
min. 500 mm (20"), max 6000 mm (236")
Communication
PNP transistor output
Certificates / Approvals
ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex
Application limits
Solids, grain size max. 30 mm (1.2"),
Most downloaded
Minicap FTC262
Operating Instructions
English version - 05/2019
Point level switch with buildup compensation
No calibration necessary
EN
CS DE EL ES FR HU IT JA LT NL PL RO RU SK ZH
02/05/2019
14/10/2014
28/05/2004
01/11/2001
Language:
English
Version:
02/05/2019
File size:
400.4 KB
File name:
KA00155FA6_1419.pdf
41 documents
Technical Information
Minicap FTC260, FTC262
Point level switch with buildup compensation
EN
German Hungarian Polish Portuguese Russian Slovak Chinese
02/05/2019
08/04/2016
26/11/2014
14/10/2014
08/10/2012
Language:
English
Version:
02/05/2019
File size:
513 KB
File name:
TI00287FEN_1719.pdf
EN
Bulgarian Czech Danish German Greek Spanish Estonian Finnish French Croatian Hungarian Indonesian Italian Japanese Korean Lithuanian Latvian Dutch Norwegian Polish Portuguese Romanian Russian Slovak Slovenian Swedish Thai Turkish Chinese
29/05/2024
Language:
English
Version:
29/05/2024
File size:
382.8 KB
File name:
KA01715FEN_0124-00.pdf
Operating Instructions Cable gland.
Cable gland.
EN
German French
01/03/2000
Language:
English
Version:
01/03/2000
File size:
37 KB
File name:
KA158PA3.PDF
Minicap FTC262
Operating Instructions
Point level switch with buildup compensation
EN
Czech German Greek Spanish French Hungarian Italian Japanese Lithuanian Dutch Polish Romanian Russian Slovak Chinese
02/05/2019
14/10/2014
28/05/2004
01/11/2001
Language:
English
Version:
02/05/2019
File size:
400.4 KB
File name:
KA00155FA6_1419.pdf
Bedienungsanleitung/ Operating Instuctions
Minicap FTC 262
Seilkürzung
EN
German Spanish French Italian Lithuanian Dutch Polish Chinese
14/10/2014
01/04/2000
Language:
English
Version:
14/10/2014
File size:
705.1 KB
File name:
KA00157FA6_1314.pdf
Kurzanleitung/ Short Operating Instuction
Minicap FTC 262
Sicherheitsschaltung/ Fail-safe mode.
Sicherheitsschaltung.
EN
German Spanish French Italian Dutch Polish
20/08/2015
01/04/2000
Language:
English
Version:
20/08/2015
File size:
46.1 KB
File name:
KA00156FA6_13.15.pdf
II 1/2 D Ex ia/tb [ia Da] IIIC T<sub>200</sub> 108°C T91°C
Language:
English
Version:
12/07/2021
File size:
399.7 KB
File name:
XA02551FEN_0121-00.pdf
Ex ia/tb [ia Da] IIIC T<sub>200</sub> 108°C T91°C Da/Db
Language:
English
Version:
23/05/2023
File size:
399.2 KB
File name:
XA02866FEN_0122-00.pdf
Ex ia/tb [ia Da] IIIC T<sub>200</sub> 108°C T91°C Da/Db
EN
Chinese
14/07/2022
19/07/2021
01/11/2016
27/03/2015
29/10/2014
Language:
English
Version:
14/07/2022
File size:
504.3 KB
File name:
XA01347FEN_0522-00.pdf
ATEX:
EN
Bulgarian Czech Danish German Greek Spanish Estonian Finnish French Croatian Hungarian Italian Latvian Dutch Polish Portuguese Romanian Slovak Slovenian Swedish
22/03/2021
02/09/2020
13/04/2016
07/01/2015
16/09/2014
Language:
English
Version:
22/03/2021
File size:
402.4 KB
File name:
XA00092FEN_1721.pdf
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Drawing number
Order code
20
543201-0000
Cover F14 PE, transparent PA
Drawing number
Order code
20
943201-1001
Cover F30/31/34 Alu, gasket
Drawing number
Order code
20
71092705
Cover F30/31/34 Alu, sight glass, gasket
Drawing number
Order code
20
71092707
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
Drawing number
Order code
20
52020429
Electronics FTC262 Ex AC/DC
Drawing number
Order code
30
52005634
Electronics FTC262 Ex 10,8-45VDC, PNP
Drawing number
Order code
30
52005636
Rope shortening kit FTC262
